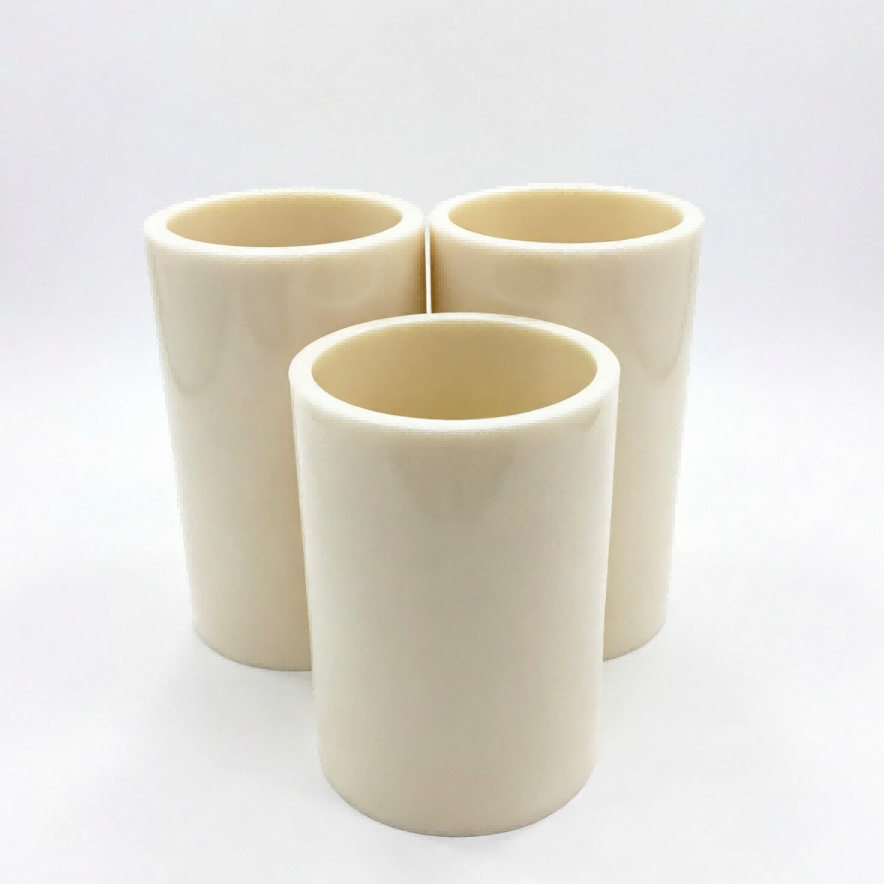

ABS tube rolling cores

Jiangsu Hongkai Plastic Technology Co., Ltd. (JSHKCores) is a professional manufacturer specializing in the research, development and production of ABS tube rolling cores. With more than 10 years of experience in ABS core tube manufacturing, JSHKCores provides high-quality 3-inch and 6-inch ABS tube rolling cores widely used in lithium-ion battery separators, optical films, plastic films and other roll-to-roll processing industries.

Product Advantages

High Precision for Stable Winding Performance

Precision is critical for winding applications, especially in lithium-ion battery separator and optical film production. JSHKCores manufactures ABS tube rolling cores through advanced extrusion technology and precision calibration processes to ensure accurate dimensions and stable performance.

Key precision indicators include:

● Inner diameter tolerance control
● Wall thickness uniformity
● Excellent straightness
● High roundness accuracy

These features help ensure proper matching with winding equipment, reduce vibration during operation and maintain consistent roll quality.

High-Quality ABS Material for Reliable Performance

JSHKCores uses high-quality ABS resin as the primary raw material to manufacture ABS tube rolling cores. According to application requirements, standard ABS materials or anti-static modified ABS materials can be selected.

ABS material provides:

● Good rigidity and impact resistance
● Stable mechanical strength
● Excellent dimensional stability
● Resistance to deformation during use

These properties allow the cores to maintain reliable performance during repeated winding operations.

Smooth Surface Finish to Protect Wound Materials

The surface quality of the core directly affects the quality of the finished roll. Through controlled extrusion and surface inspection processes, JSHKCores ensures that the surface of the cores remains smooth and consistent.

The optimized surface finish helps:

● Reduce friction between the core and wound materials
● Prevent scratches or damage to sensitive films
● Improve winding uniformity
● Support high-speed production processes

This makes the products suitable for industries with strict surface quality requirements, including lithium battery separators and optical films.

Strict Manufacturing Process and Quality Control

To ensure stable product performance, JSHKCores implements strict quality control throughout the entire manufacturing process.

Raw Material Inspection

Before production, incoming ABS resin is inspected for key properties, including:

● Melt flow index
● Moisture content
● Material appearance

For moisture-sensitive ABS resin, drying treatment is performed under controlled conditions, typically at 70--85℃ for 2--6 hours, reducing moisture content below 0.1% to prevent extrusion defects such as bubbles and silver streaks.

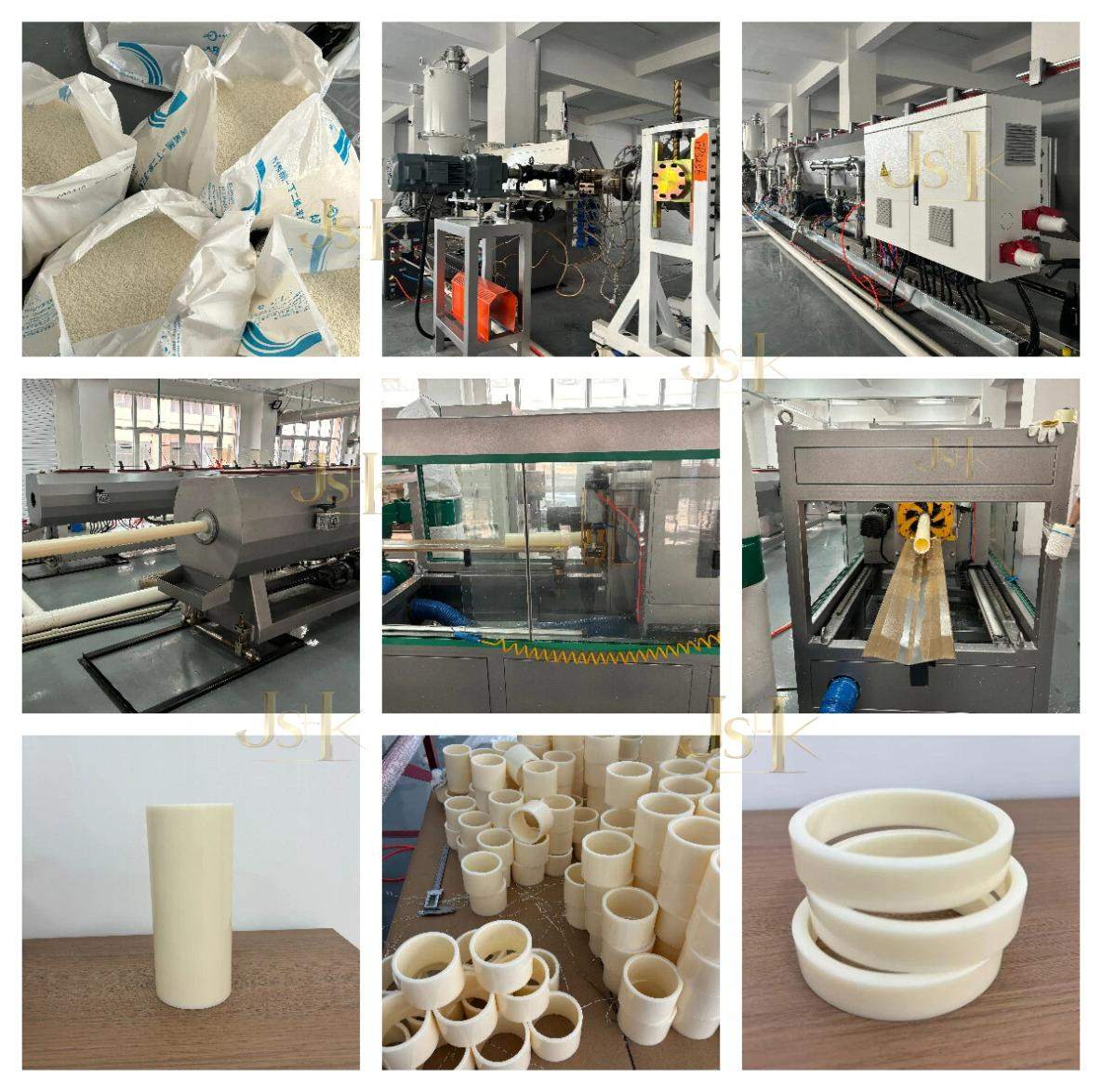

Precision Extrusion Production

During production, dried ABS materials are accurately mixed with functional additives such as color masterbatch and anti-static agents according to product requirements.

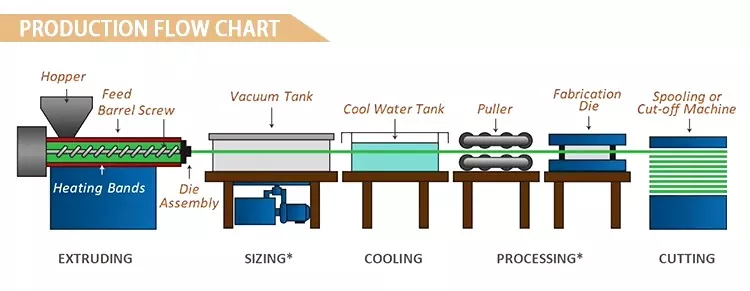

The material then passes through a precision extrusion process, including:

1. Controlled melting and plasticization
2. Precision die extrusion
3. Vacuum calibration
4. Cooling and shaping
5. Haul-off traction
6. Cutting to required length
7. Final inspection and packaging

This manufacturing process ensures consistent dimensions and reliable quality for every batch.

Product Applications

ABS tube rolling cores are widely used in roll material processing industries, including:

● Lithium-ion battery separator winding
● Optical film production
● Plastic film manufacturing
● Adhesive tape winding
● Other precision winding applications

The products provide stable support for materials during winding, storage and transportation processes.

Product Specifications

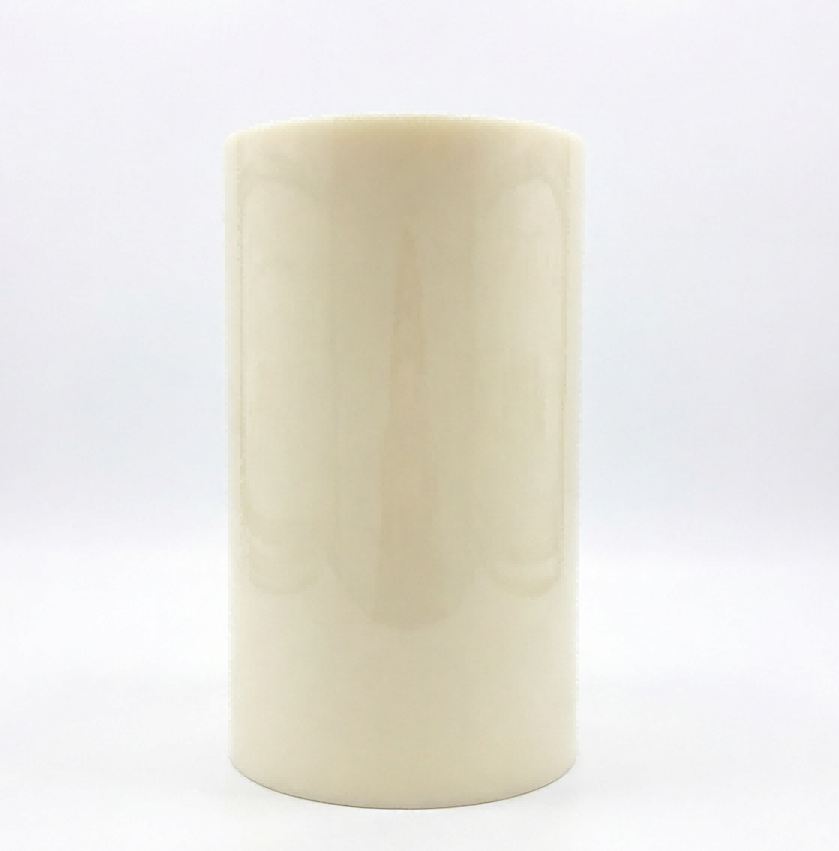

6-Inch ABS Tube Rolling Cores

3-Inch ABS Tube Rolling Cores

Customized ABS Tube Rolling Core Solutions

Different winding equipment and production processes require different core specifications. JSHKCores provides customized solutions according to customer requirements, including:

● Different inner diameters
● Customized wall thickness
● Various cutting lengths
● Surface treatment requirements
● Special material requirements

For 6-inch ABS tube rolling cores, the minimum cutting length is approximately 400mm. JSHKCores also provides cutting and chamfering services to meet specific application requirements.

FAQ

1. What industries use these cores?

ABS tube rolling cores are commonly used in lithium-ion battery separator production, optical film manufacturing, plastic film winding and adhesive tape industries. They provide stable support during high-speed winding processes.

2. What are the advantages compared with traditional cores?

These cores offer high dimensional accuracy, good mechanical strength, smooth surface quality and stable performance, making them suitable for precision winding applications where consistent processing results are required.

3. Are these cores reusable?

Yes. Under normal storage and operating conditions, they can typically be reused for multiple winding cycles. The actual service life depends on winding tension, equipment conditions and operating methods.

4. What quality standards do JSHKCores products meet?

JSHKCores products comply with T/CPPIA 56-2025 "ABS Tube Rolling Cores Specifically for New Energy Vehicle Power Battery Separators", meeting requirements for precision, cleanliness, surface quality and mechanical properties.

5. Can JSHKCores provide customized sizes?

Yes. JSHKCores supports customized solutions according to customer requirements, including diameter, wall thickness, length and other specifications to meet different winding equipment needs.

6. What is the production capacity of these cores?

Taking 6-inch cores as an example, products with 1.5mm wall thickness can achieve an output of approximately 350 meters per day under 24-hour continuous production. Other specifications may reach 500--600 meters per day depending on product requirements.
